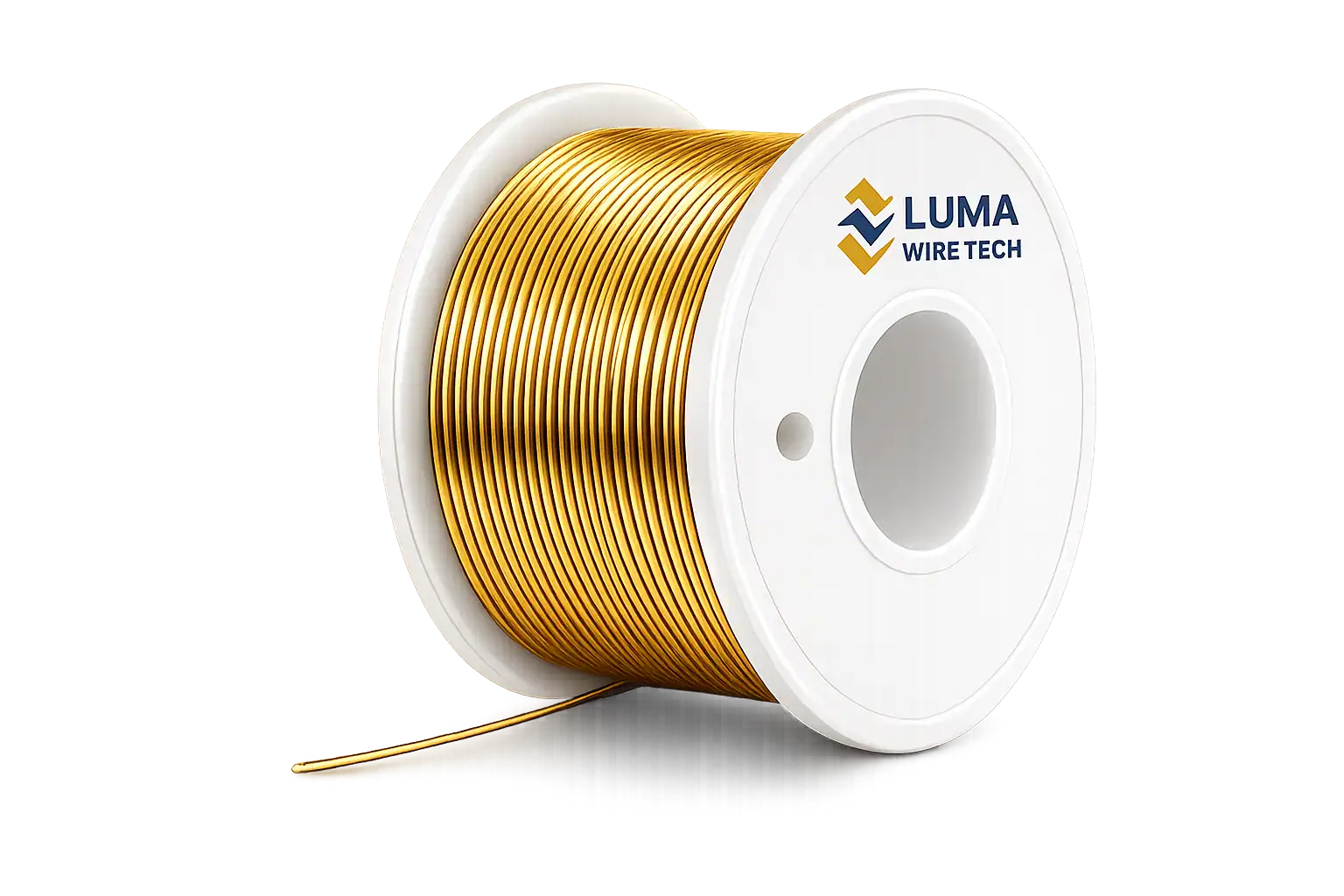

Precision plated tungsten wire combines the exceptional strength, stiffness, and high-temperature performance of tungsten with application-specific surface properties achieved through advanced reel-to-reel plating.
At Luma Wire Tech, we manufacture ultra-fine tungsten wire from 5 to 200 microns and enhance its performance using precision coatings tailored to demanding applications. Depending on the selected plating material, tungsten wire can be optimized for improved electrical conductivity, corrosion resistance, wear resistance, solderability, or long-term contact reliability.
Manufactured in Sweden under ISO-certified processes, our plated tungsten wires support high-performance applications across medical technology, electronics, aerospace, scientific research, defense, and technical textiles.
| Plating Material | Added Properties to Tungsten Wire |
|---|---|
| Gold | Excellent conductivity, corrosion resistance, stable electrical contacts, and oxidation protection. |
| Silver | Highest electrical conductivity and outstanding signal transmission performance. |
| Palladium | Enhanced wear resistance, corrosion resistance, and long-term electrical contact reliability. |
| Platinum | Exceptional chemical stability and reliable performance in harsh and high-temperature environments. |
| Nickel | Improved wear resistance and excellent adhesion for subsequent plating layers. |
| Copper | Improved electrical conductivity and a cost-effective conductive surface. |
| Tin | Excellent solderability for electronic assembly and interconnection applications. |
| Rhodium | Extremely hard surface with superior wear resistance and long-lasting electrical contacts. |
Diameter range: 5–200 µm
Delivery format
Pure tungsten offers exceptional mechanical strength, stiffness, density, and thermal stability. Through precision plating, these properties can be combined with additional surface characteristics that enhance performance for specific applications.
Benefits of plated tungsten wire include:
By selecting the appropriate plating material, engineers can optimize wire performance without changing the underlying tungsten core.
lated tungsten wire is widely used in applications where exceptional mechanical performance must be combined with optimized surface characteristics. Typical applications include:
Aerospace
Lightweight mesh antennas
High-frequescy signal pathways
Connectors
Thermal sensors
Structural support
Medical
Neurostimulation
surgical robotics
Stents
Guide wire
Catchers
Spring coils
Snatchers
mILITARY & DEFENSE
sensors & detectors
Electronics
Wire bonding – Microchips
Semiconductors
Batteries
Supercapacitors
Quantum computing
Photovoltaic (PV) cells
Solar panels
Technical research and development
Particle detectors
Wire Chambers
Terahertz grid polarizers
Straw tube anodes
Technical textiles
Healthcare
Fashion
Sports & fitness
Aerospace & automotive
Protective textiles
E-textiles
Industrial & Schientific Engineering
Boreschopes
High-temperature insruments
Microscopes
Grid polarizers
Air ionizers
Negative Ion generators
Fine wire for lightning industry
fine wire for digital printing and ion generators
| Property | W/K – 60ppm |
|---|---|
| Thermal conductivity | + |
| Tensile strength and hardness | ≈ |
| High-temperature stability / Creep resistance | ≈ |
| Recrystallization temperature | ≈ |
| Workability/formability | ≈ |
| Corrosion resistance | ≈ |
| Wear resistance | + |
| Ductility | – |
| Electron work function | – |
| Electrical resistance | – |
Gold-plated, polished and clean metal wires for demanding technical applications.
Our team support demanding wire applications.
