TECHNICAL PRODUCT INFORMATION

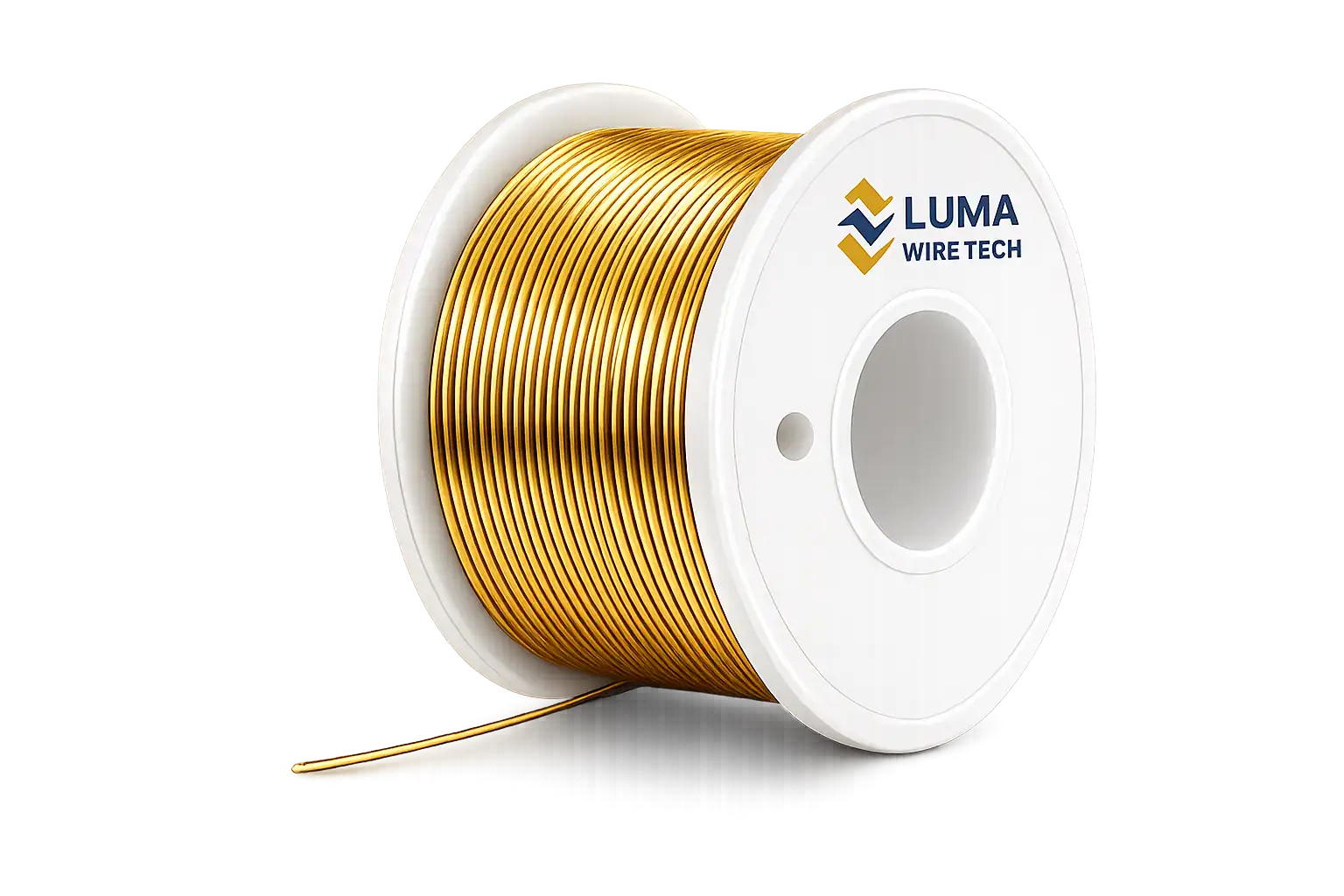

Plated Tungsten-Rhenium Wire

Ultra-Fine Tungsten-Rhenium Wire with Precision Surface Engineering

Luma Wire Tech manufactures precision plated Tungsten-Rhenium wire for applications where exceptional mechanical performance must be combined with application-specific surface properties.

By combining the outstanding strength, ductility, and high-temperature stability of Tungsten-Rhenium (97/3) with advanced reel-to-reel plating, we enable engineers to tailor the wire’s electrical, mechanical, and surface characteristics without changing the base material.

Available in diameters from 5 to 200 microns, our plated Tungsten-Rhenium wires are manufactured in Sweden under ISO-certified processes and can be coated with gold, silver, palladium, platinum, nickel, copper, tin, or rhodium depending on the performance requirements of your application.

Available Plating materials

Plating Material	Added Properties to Tungsten-Rhenium Wire
Gold	Excellent conductivity, corrosion resistance, stable electrical contacts, and oxidation protection.
Silver	Highest electrical conductivity and outstanding signal transmission performance.
Palladium	Enhanced wear resistance, corrosion resistance, and long-term electrical contact reliability.
Platinum	Exceptional chemical stability and reliable performance in harsh and high-temperature environments.
Nickel	Improved wear resistance and excellent adhesion for subsequent plating layers.
Copper	Improved electrical conductivity and a cost-effective conductive surface.
Tin	Excellent solderability for electronic assembly and interconnection applications.
Rhodium	Extremely hard surface with superior wear resistance and long-lasting electrical contacts.
